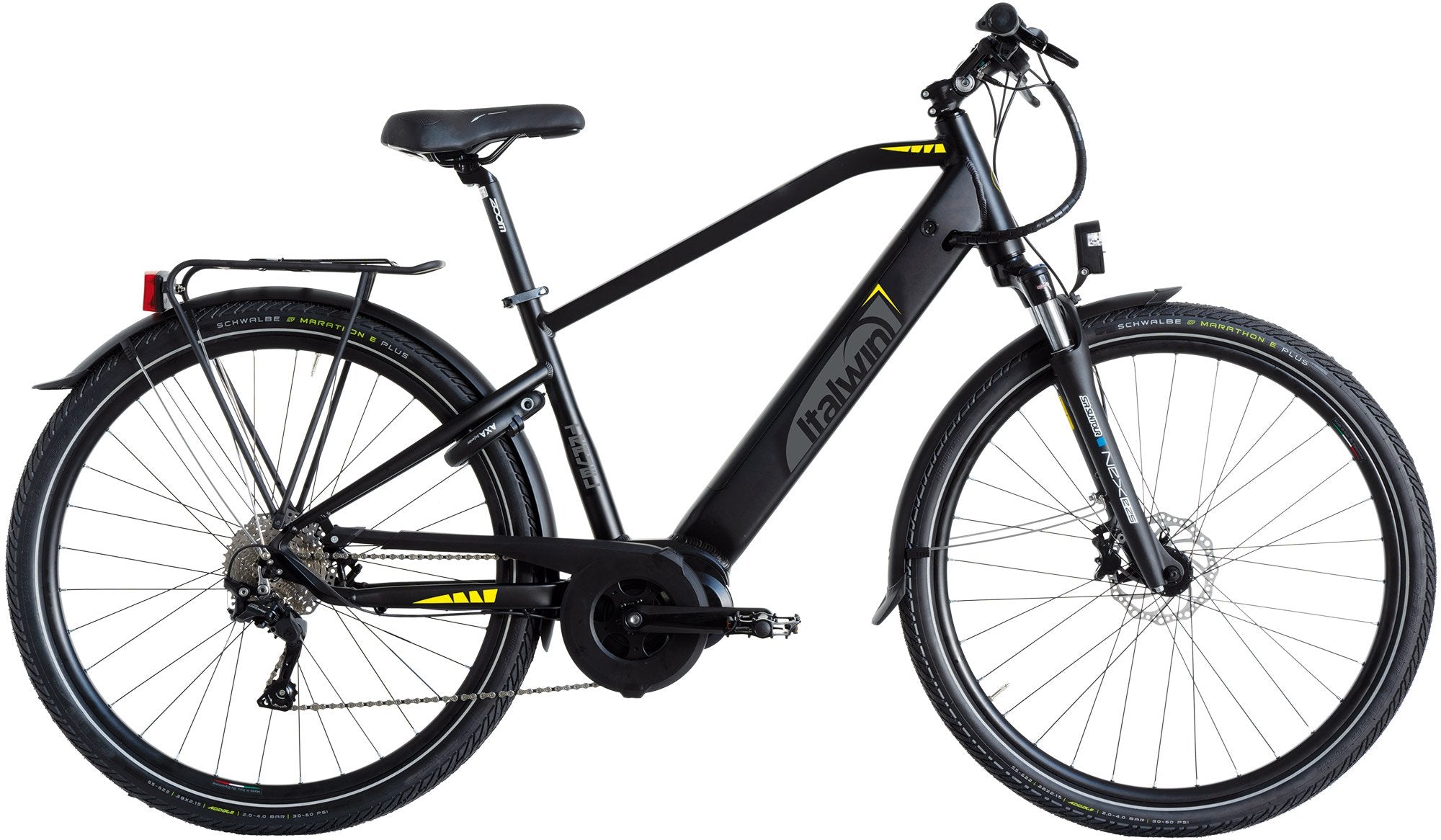

TRAVEL MAN 28″
Here is the new TRAVEL MAN, the most enjoyable way to explore new roads. This e-bike is equipped with the powerful FIVE F90 drive unit, combined with a 10-speed Shimano Deore gearbox and a removable battery smoothly integrated into the frame with a sleek and clean design.
Its components make every trip unique, the Schwalbe Marathon e-plus wheels glide gently on the asphalt, the Suntour fork absorbs any bumps, the new color display keeps you informed every moment about speed and battery status throughout all the journey. With the new TRAVEL MAN is now possible to take bike tours that previously were inconceivable.
An e-bike that allows you to extend the duration of your adventures: travel farther and have fun longer. This electric bike offers a smooth and comfortable riding experience on all types of terrain. The FIVE F90 electric motor is compact and provides much more power with every pedal stroke. Like the unisex version it is equipped with a 10-speed Shimano Deore gearbox, Schwalbe Marathon e-plus wheels, lockable Sun tour fork and the new colour display.
 Batteries L36V, Lithium-Ion equipped with Samsung cells and disappearing integrated into the frame. The battery and the charging plug are fully integrated into the frame with IPX5 protection level from water and dust to avoid damage. Easy charging by removing the battery |
 Schwalbe Marathon trekking tires “Nopuncture” tire thanks to the anti-puncture protection. Maximum safety and grip at high speeds and on long excursions. The hightech construction materials give a surprisingly smooth glide. |
 FIVE F90 central motor FIVE F90 is a second generation central engine: it bites the brake in the city and is aggressive in the lowlands. Equipped with exceptional boost, FIVE F90 delivers power to deal with slopes up to 30% and ensures driving pleasure thanks to its noiseless. |
 Color LCD display Color LCD display, which allows to manage the system, to select the assistance levels, to activate the soft start and to check the battery level. The device is equipped with a USB port to charge your smartphone. |
 BATTERY FULL INT FIVE 14,5Ah 36V 522Wh .Sam |  MOTOR Central FIVE F90 250W/90Nm |
 FRAME Aluminum 47 cm integrated battery |  DISPLAY Color LCD: 5 levels of engine assist and soft start device. USB socket |

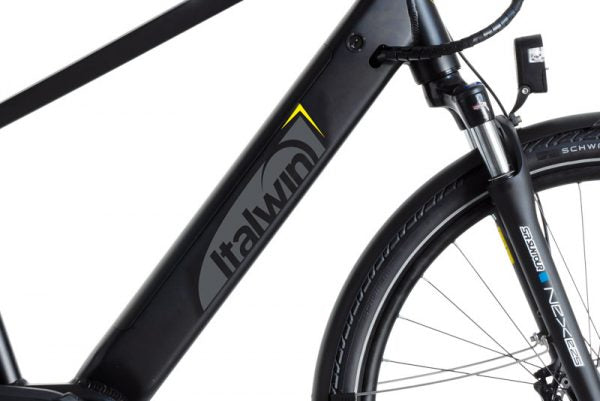

Battery
L36V, Lithium-Ion equipped with Samsung cells and disappearing integrated into the frame. The battery and the charging plug are fully integrated into the frame with IPX5 protection level from water and dust to avoid damage. Easy charging by removing the battery

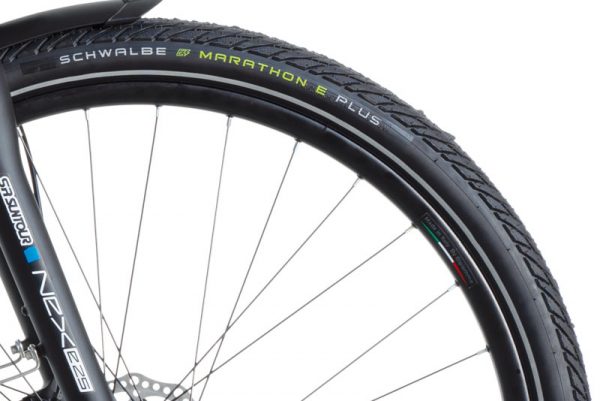

Schwalbe Marathon trekking tires
“No puncture” tire thanks to the anti-puncture protection. Maximum safety and grip at high speeds and on long excursions. The hightech construction materials give a surprisingly smooth glide.

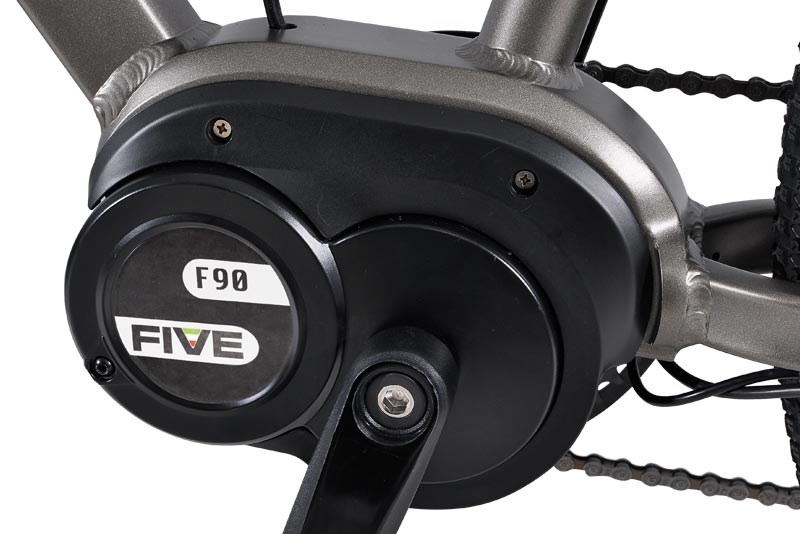

FIVE F90 Central motor
The 250W/350W FIVE F90 is a second generation central engine: it bites the brake in the city and is aggressive in the lowlands. Equipped with exceptional boost, FIVE F90 delivers power to deal with slopes up to 30% and ensures driving pleasure thanks to its noiseless.

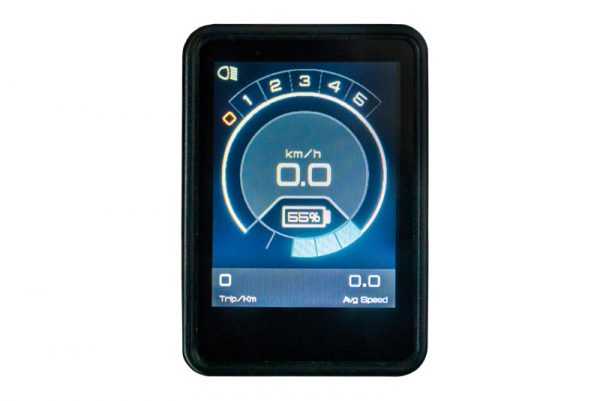

Color LCD display
Color LCD display, which allows to manage the system, to select the assistance levels, to activate the soft start and to check the battery level. The device is equipped with a USB port to charge your smartphone.
Transmission | Chain KMC Special E-Bike |
Fame | Hydroformed Aluminum Integrated Battery 47cm |
Wheels | 28″ x 2.15” Schwalbe Marathon e-plus |
Motor | FIVE F90 Central 250W/350W 90Nm |
Weight(without battery) | 50.7 LBs |
Brakes | Front & Rear disc brakes |
Saddle | Selle Bassano |
Front Fork | cushioned & lockable Suntour SF NEX E25 75 mm |
Gears | 10-Speed Shimano Acera |
Pedal Sensor | Integrated Speed Sensor |
Lights | Front & Rear LED |
Display | color LCD: 5 levels of engine assist and soft start device, USB socket |
